Signal Conditioning
4-20 mA, 0-5V, I2C, USB, and Bluetooth outputs
Overview
SMD signal conditioning boards are engineered to pair directly with SMD load cells, pressure sensors, and other transducers — providing calibrated, temperature-compensated output in standard industrial and digital protocols. Fully custom boards are designed to customer specifications, including custom enclosures, connectors, and firmware.
Key Features
4-20 mA, 0-5V, I2C, SPI
USB & Bluetooth wireless
Temperature compensation
Custom calibration
Typical Applications
Load cell digitization for embedded systems
Pressure sensor 4-20 mA PLC integration
Wireless weight data transmission
Multi-sensor data acquisition
Custom sensor-to-controller interface
USB data logging for laboratory instruments
Markets Served
Medical DeviceIndustrialLaboratorySemiconductor
Specifications
Output protocols4-20 mA, 0-5V, 0-10V, I²C, SPI, USB, BT
Excitation3.3V, 5V, 10V bridge excitation
ResolutionUp to 24-bit ADC
Temp compensation–40°C to +85°C
CommunicationRS-232, RS-485, USB, Bluetooth
DimensionsCustom PCB to fit OEM housing
CalibrationFactory or field calibration
CertificationsISO 9001, ISO 13485
Key Models

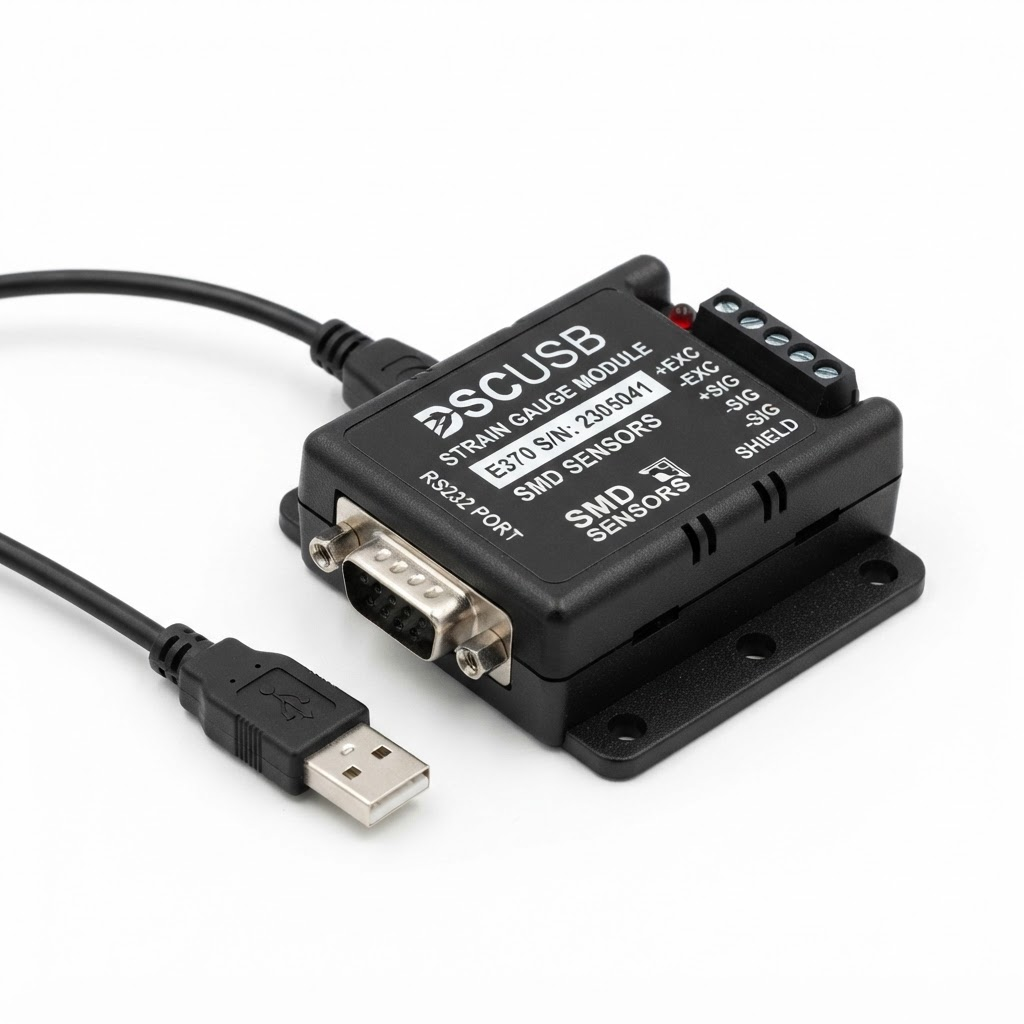

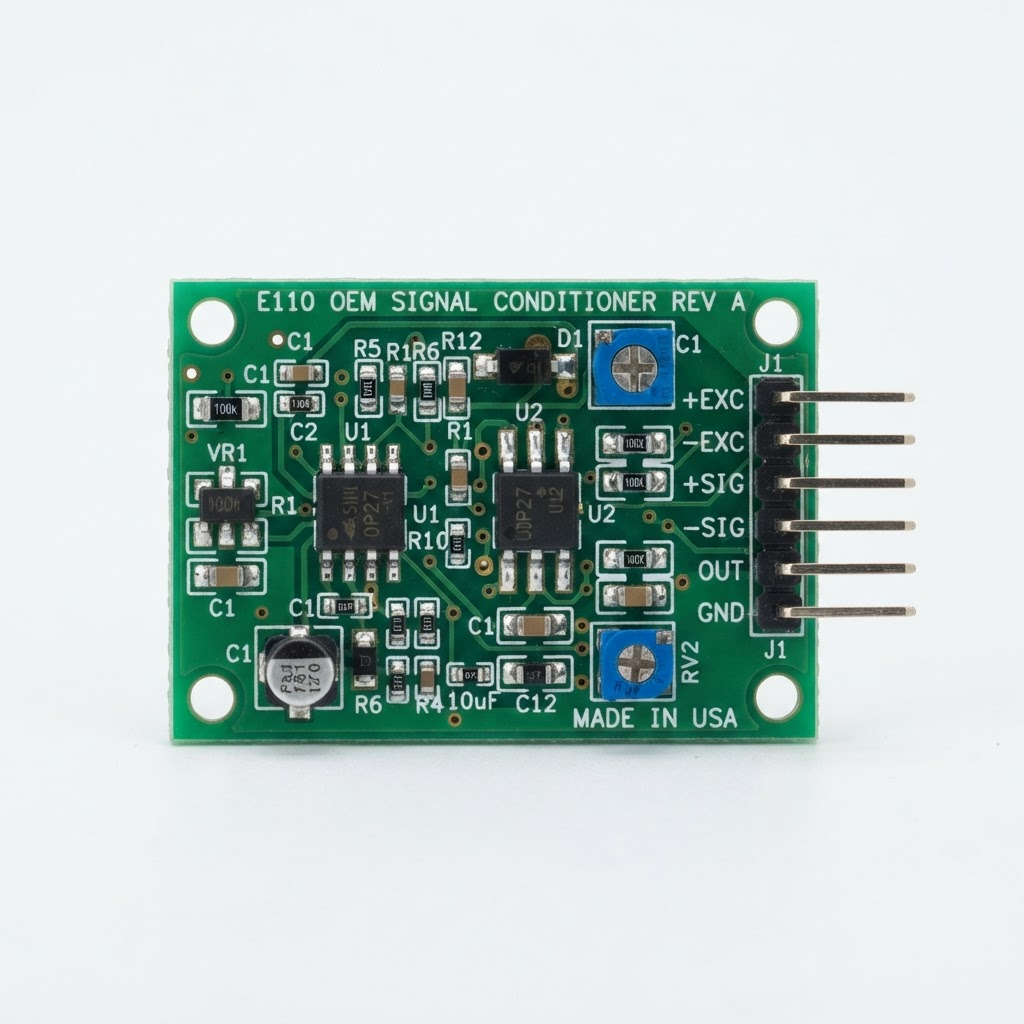

E110 (I²C / VDC)E120 (4-20 mA)E370 DSC-USB
Get a quote or sample
Our engineers are ready to discuss your application and recommend the right sensor configuration.
