Precision Scales
Low profile, overload-protected scales for medical and semiconductor
Overview
SMD precision scales combine thin-film load cell technology with integrated signal conditioning and overload protection into a complete, calibrated weigh platform. Designed for OEM integration where accuracy, repeatability, and compact form factor are critical. Available in platform, hanging, and custom configurations.
Key Features
±0.05% full-scale accuracy
Overload protection
Splash resistant options
Custom capacity & dimensions
Typical Applications
IV bag fluid delivery gravimetric dosing
Semiconductor chemical dispense by weight
Laboratory analytical weighing
Food & beverage dispensing control
Medical waste containment monitoring
Reagent bottle weight tracking
Markets Served
Medical DeviceSemiconductorLaboratoryFood
Specifications
Accuracy±0.05% FS (non-linearity + repeatability)
Capacity range0.1 lb to 1,000 lb
Platform sizeCustom to application
OutputAnalog, RS-232, USB, 4-20 mA
Overload protection200% FS
IP ratingSplash resistant options
RF immunityAvailable
CertificationsISO 9001, ISO 13485
Key Models

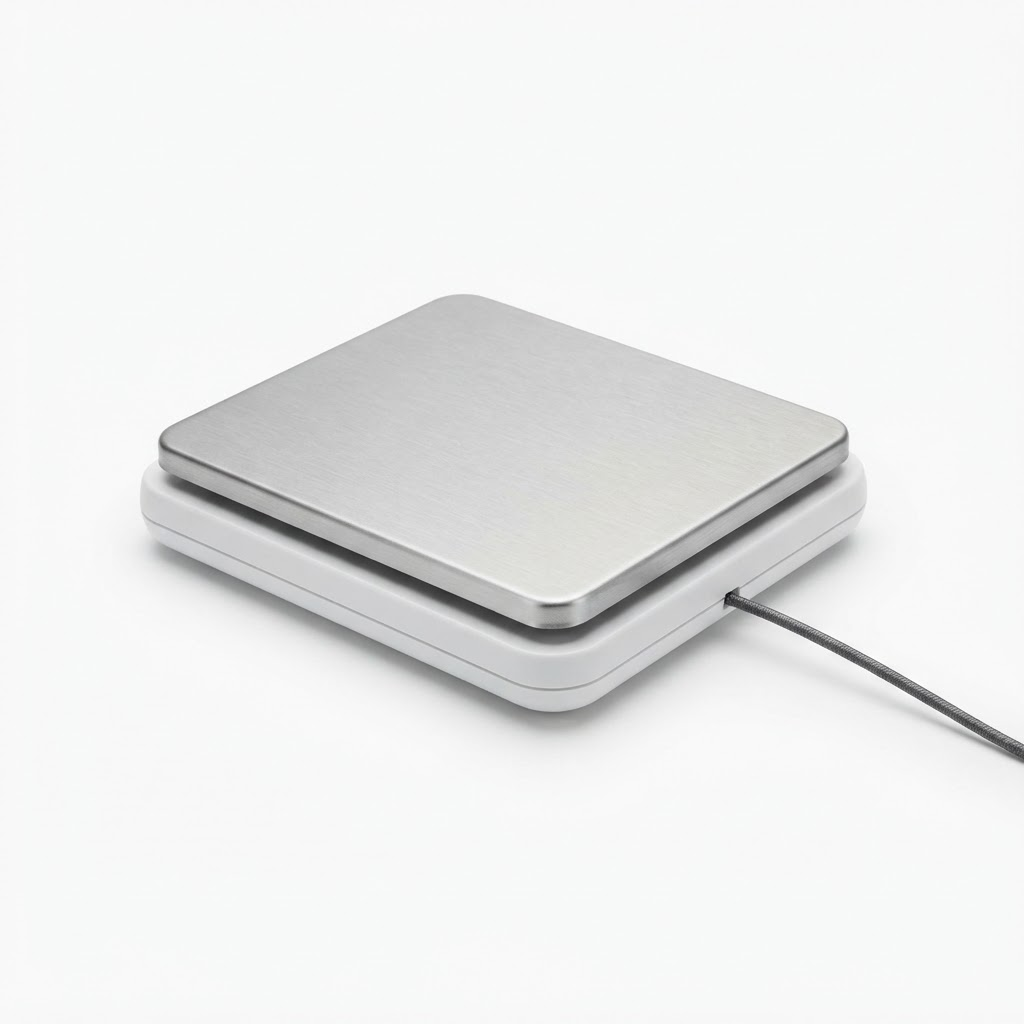

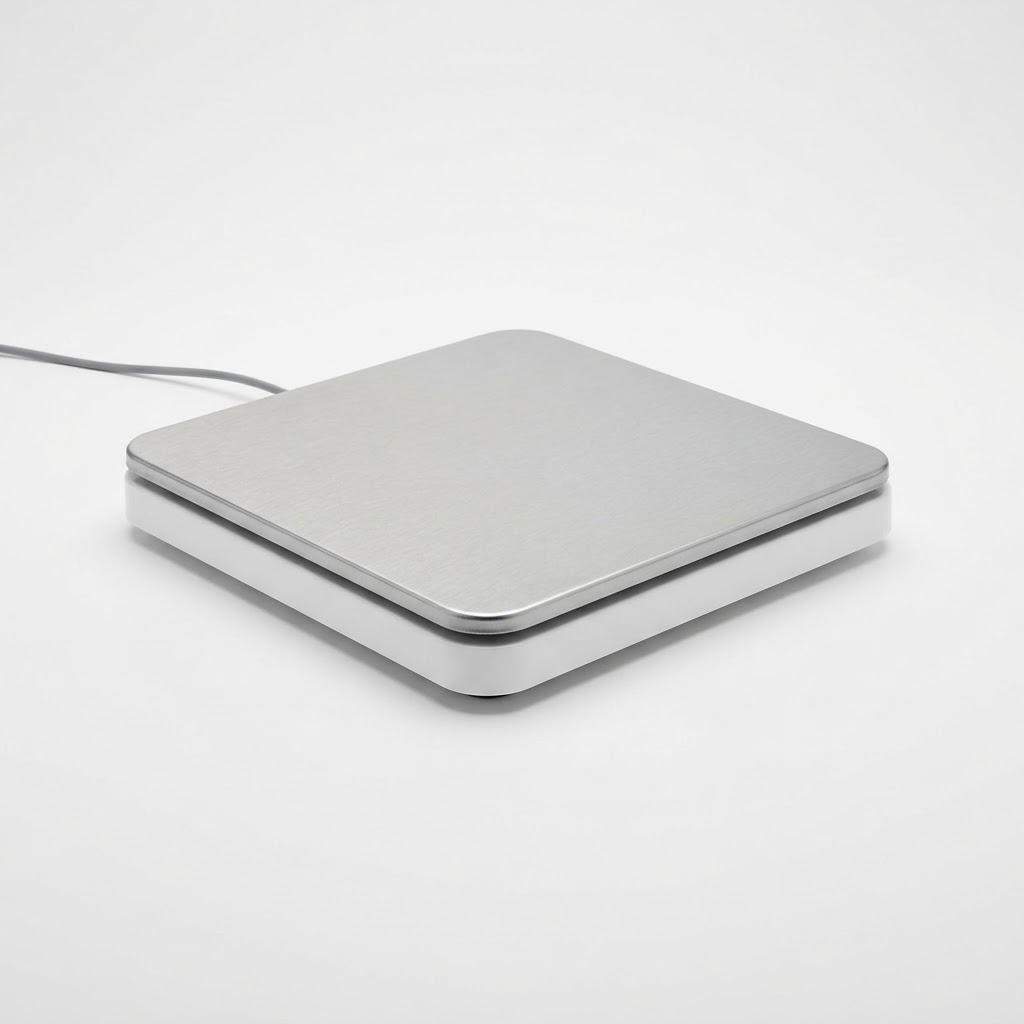

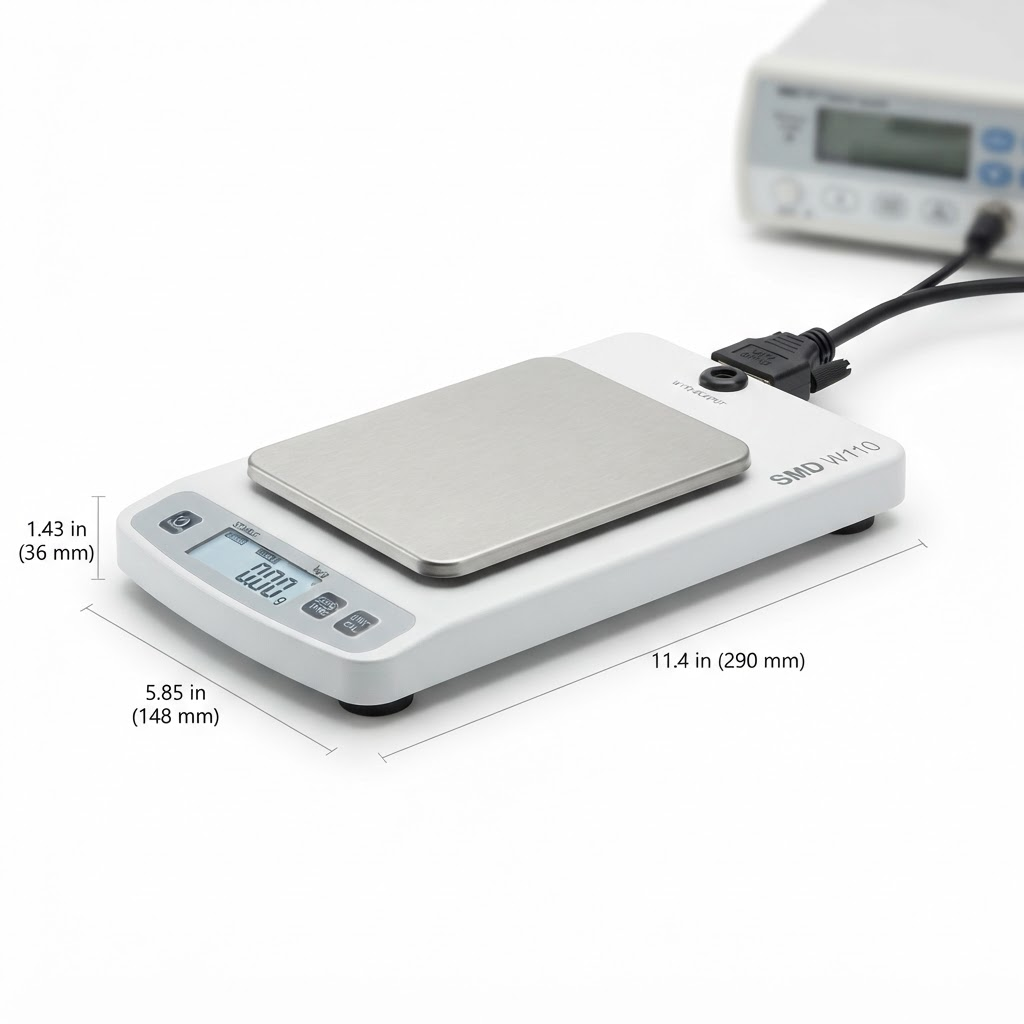

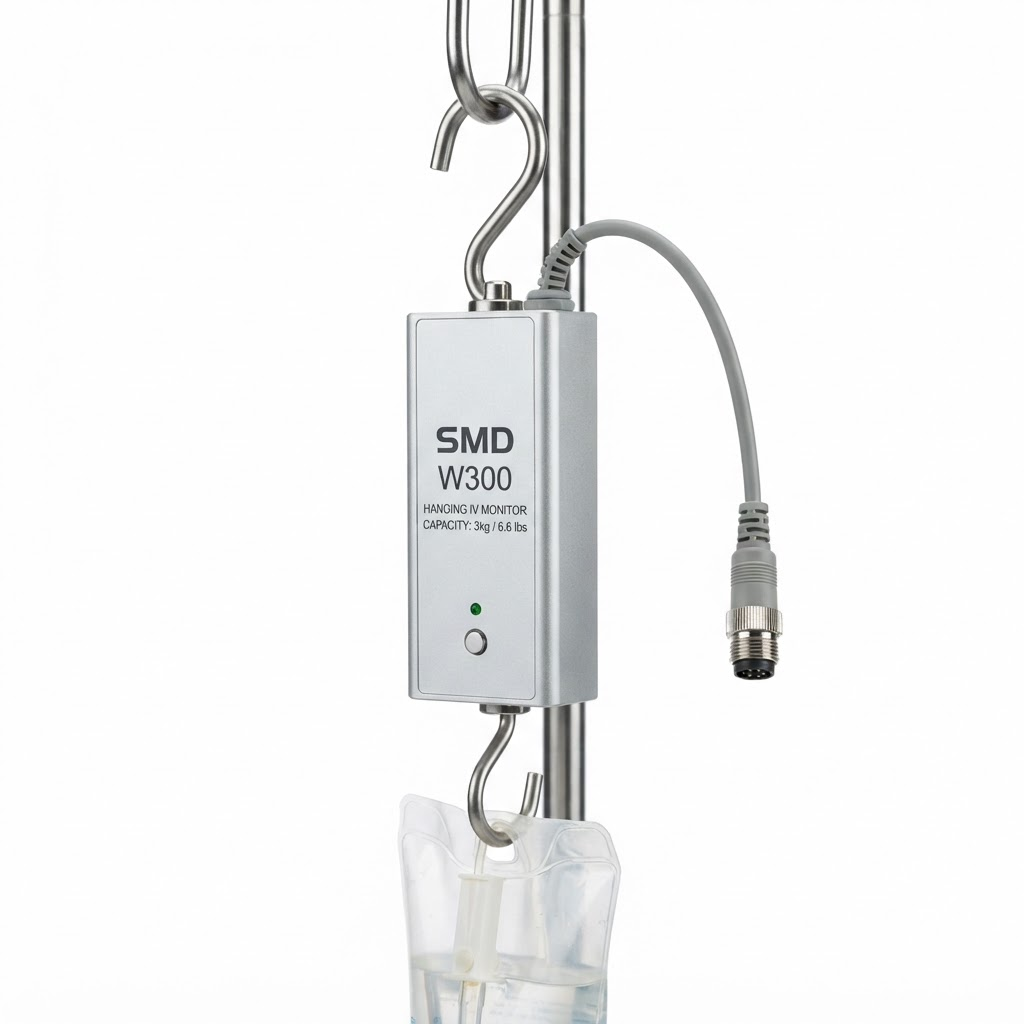

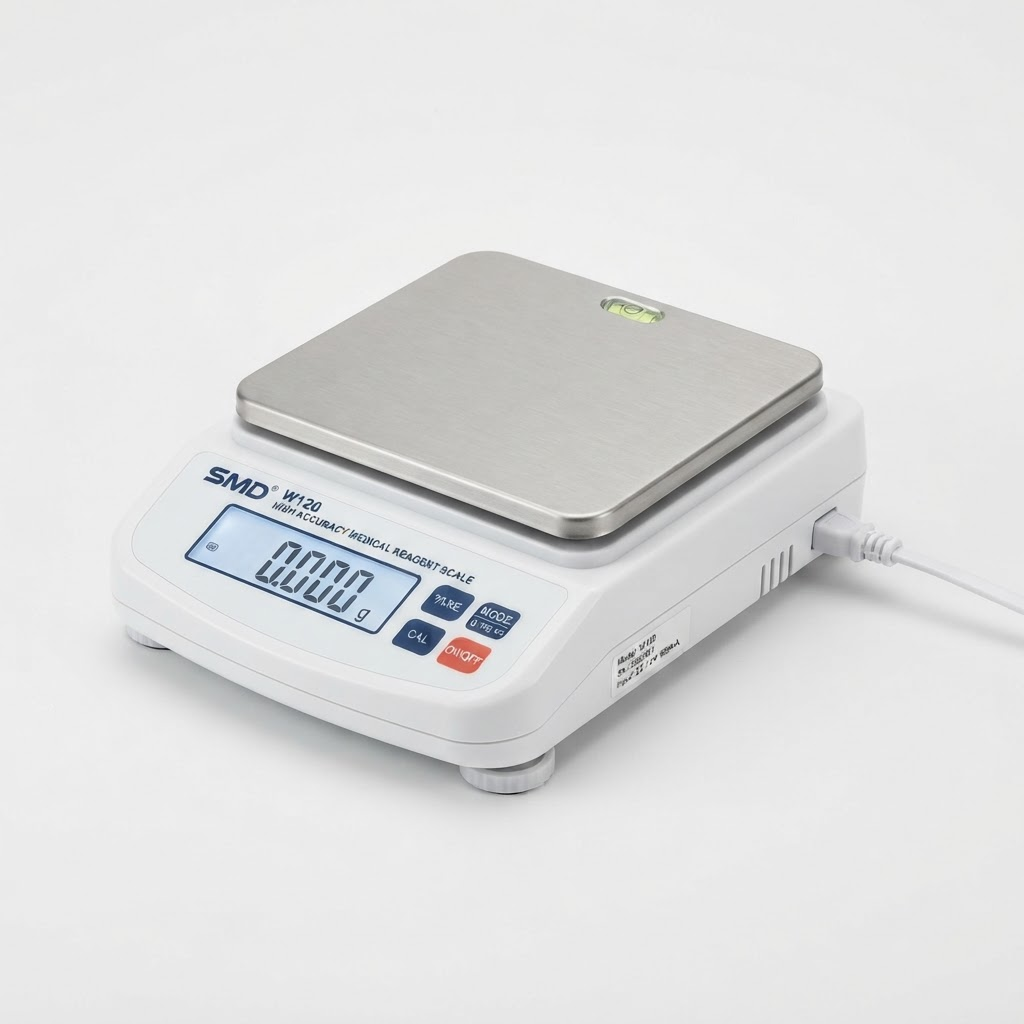

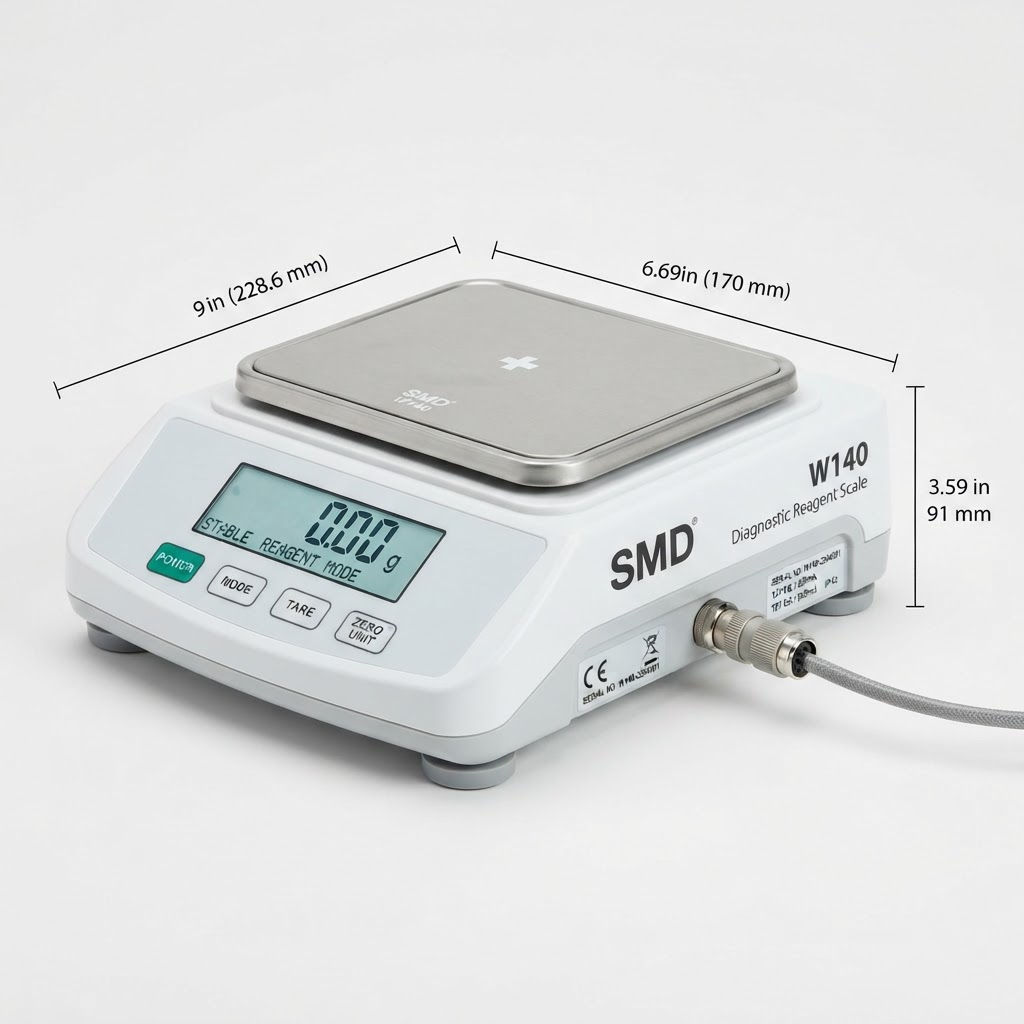

W100W110W120W130W140W300 Hanging
Get a quote or sample
Our engineers are ready to discuss your application and recommend the right sensor configuration.
CERTIFICATIONS
ISO 9001:2015ISO 13485:2016
