Custom Sensors For Industrial Peel Force Testing
This system is used by a manufacturer to measure force in a number of objects, like: laminate, foil, labels, sealing material, or other adhesive backed materials through peel testing.
The Challenge
Need of a low profile, high accuracy, and highly repeatable load cell sensor to test the reaction force of materials and report that data.
The SMD Solution

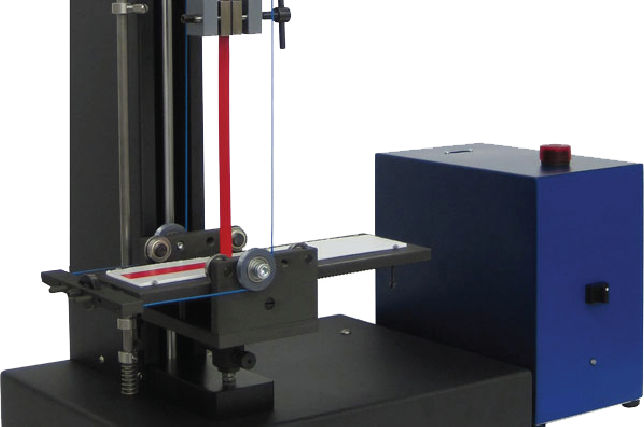

Strain Measurement Devices provided the customer with a modified S100 Load cell resulting in multiple force ranges. The load cell measures the reaction force through clamps on the Peel Testing System. This sensor offers thin film technology, and the ability to build the entire assembly, including electron beam welding. Therefore creating a highly accurate sensor that is repeatable and reliable. Thin load cell sensor to detect forces as small as 0.2 and 0.4 N with unsurpassed accuracy. Compact sensor with a simple beam mount featuring a thin film strain gauge for high accuracy and high temperature capabilities.
Engineered as a load cells & force solution for the industrial & automation market.
